Hot Steel Billet Length Measurement Posted in: Length Measurement – Tags:

Laser Distance Sensors Measure Length of Hot Steel Billets

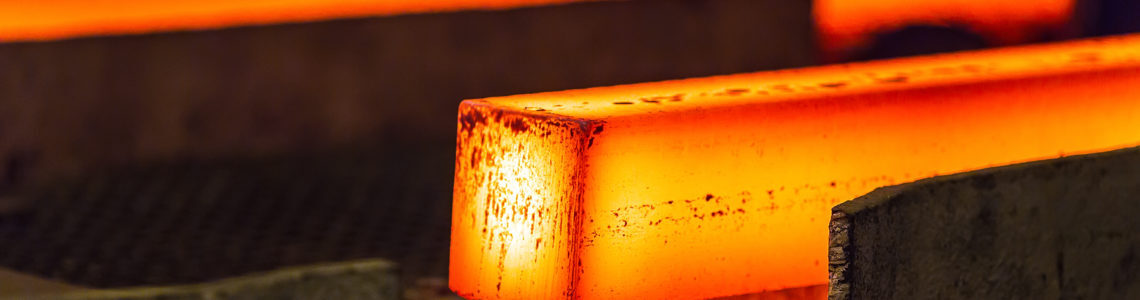

Rangefinders are used in the manufacturing process to make sure glowing yellow/red hot billet lengths are to the correct length dimensions. Non-contact laser measurement is preferred over manual measurement because it is more effective and safer. Laser rangefinders can be remotely installed and offer a safer solution. This reduces the need to rely on employees in protective clothing to use calipers to read the gauge of glowing hot materials.  The rangefinders are able to accurately profile the length of the billet despite the glowing hot temperatures.

Depending on the temperature of the billet at the time of measurement, the AR1000 distance sensor can measure the length of a billet with a temperature as high as 1,200°F to a 2mm accuracy. If the temperature is hotter, the AR2000 can measure the length of a billet with a temperature as high as 2,200°F. Our long distance industrial sensors are built for tough environments with NEMA 4, IP65 or IP67 rated enclosures.
