AR700 C-Frame

Designed to mount two AR700 sensors in opposition to take easy and accurate thickness measurements. Available for AR700 ranges from 1/8 inches to 4 inches.

Product ID: 10182 Category:

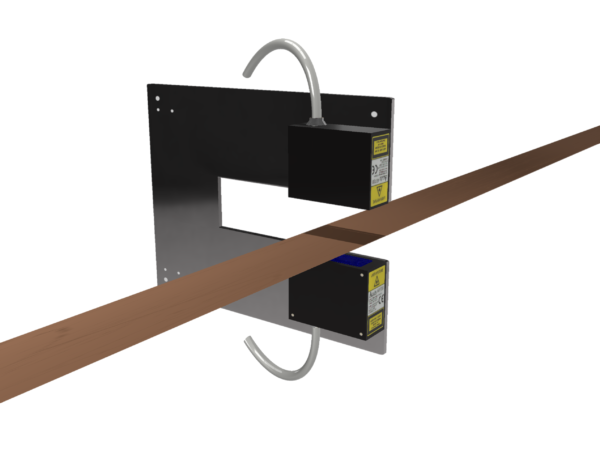

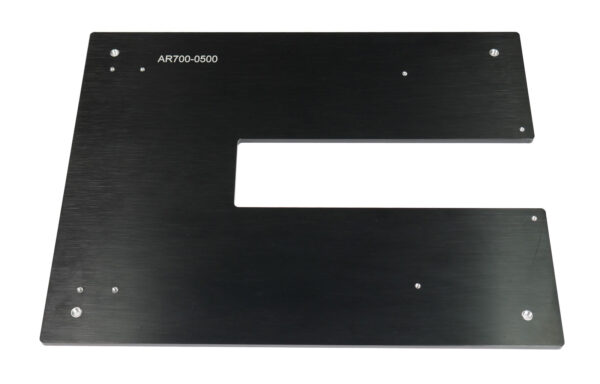

The AR700 C-Frame is a precisely manufactured frame designed to mount two Acuity AR700 laser displacement sensors in opposition to measure thickness of material easily and precisely. The C-Frame comes with M3 and M6 threaded mounted holes to both mount the sensors and mount to another piece of hardware. The C-Frames are available for AR700 sensors with ranges from 1/8 inches to 4 inches. This precision manufactured frame can help you take two of our shortest ranged AR700s and mount them in opposition, so you can take easy and accurate thickness measurements.


Related Products

AR700 Laser Displacement Sensor

The AR700 laser displacement sensor is Acuity’s top of the line, most precise, laser triangulation sensor. The AR700 series contains models with measurement ranges from 0.125 inches up to 50 inches and resolutions as low as one-sixth of a micron. With sampling speeds up to 9.4kHz and linearity to within 0.03% of the measurement range, the AR700 is a versatile sensor for many challenging applications.
