Propeller Blade Profiling Posted in: AR700 Laser Displacement Sensor – Tags:

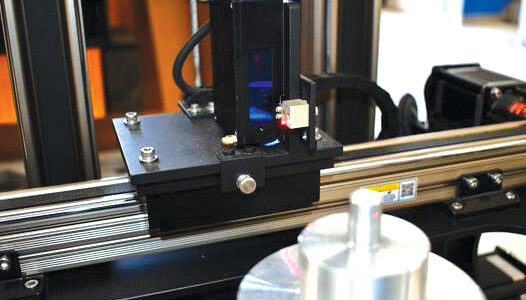

Propeller Blade AR700 Profile MeasurementA major North American propeller manufacturer and service company selected a long-range triangulation sensor to measure the profile of its propellers and controllable tip blades during the manufacturing process. Non-contact measuring, like that afforded by laser sensors, is desirable in propeller manufacturing because the fixed measuring device can be installed with a large standoff away from bulky and/or moving parts.

In this case, the customer chose a laser position sensor that had the best resolution while allowing them to measure the greatest pitch of the largest propellers and blades (difference in height between the leading and trailing edge).

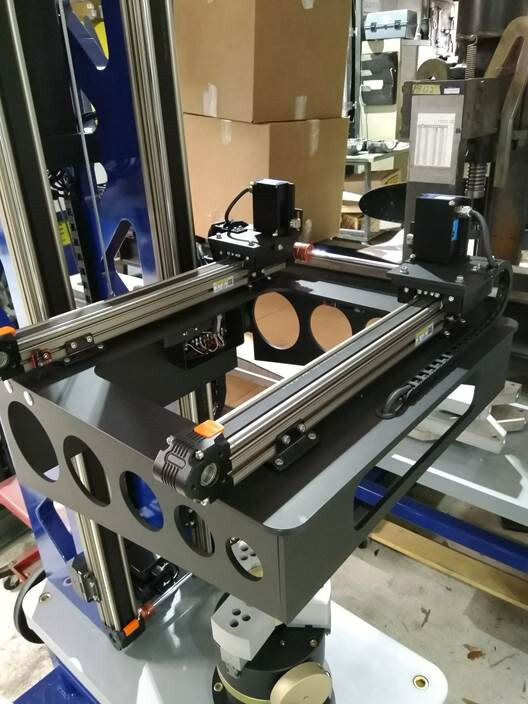

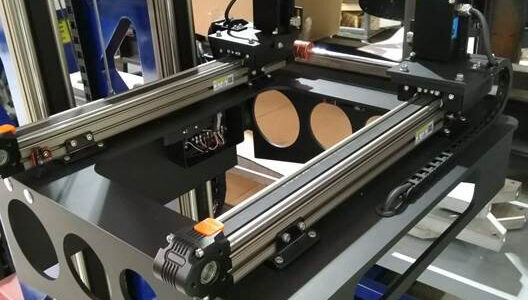

Propeller Blade Dual Laser AR700 Profile measurementThe typical surface finish of the propellers was a shiny, ground appearance, and was no problem for the Acuity AR700 laser displacement sensor with its highly-sensitive, digital CMOS detector array technology.

Related Products

AR700 Laser Displacement Sensor

The AR700 laser displacement sensor is Acuity’s top of the line, most precise, laser triangulation sensor. The AR700 series contains models with measurement ranges from 0.125 inches up to 50 inches and resolutions as low as one-sixth of a micron. With sampling speeds up to 9.4kHz and linearity to within 0.03% of the measurement range, the AR700 is a versatile sensor for many challenging applications.
